Field stripping is the process of breaking a firearm down into its major components for cleaning and inspection. You don’t fully disassemble the gun. You just take apart the key parts that collect fouling during shooting. Every gun owner needs to know how to do this correctly and safely.
This guide covers three of the most common firearm platforms: semi-automatic pistols, AR-platform rifles, and bolt-action rifles. For each one, you’ll get the exact steps, the tools you need, and the mistakes that trip up beginners.
Quick Answer: Field stripping means disassembling a firearm into its major component groups — barrel, slide or bolt, frame, and recoil system — without removing every small part. It takes 2 to 5 minutes and is done before and after every cleaning session.
Full disassembly — also called detail stripping — involves removing every pin, spring, and small component inside the gun. Gunsmiths do this for deep inspection or repairs. Field stripping is the everyday version. It gives you access to the bore, the bolt face, the feed ramp, and the recoil system without requiring specialized knowledge or many tools.
Think of it like changing your car’s air filter instead of rebuilding the engine. You’re doing the maintenance that actually matters for day-to-day function.
You should field strip your firearm after every range session, before storing it long-term, and any time it’s been exposed to rain, mud, or extreme dust. Most manufacturers recommend a basic field strip and clean after every 200 to 500 rounds, depending on the platform and ammunition type.

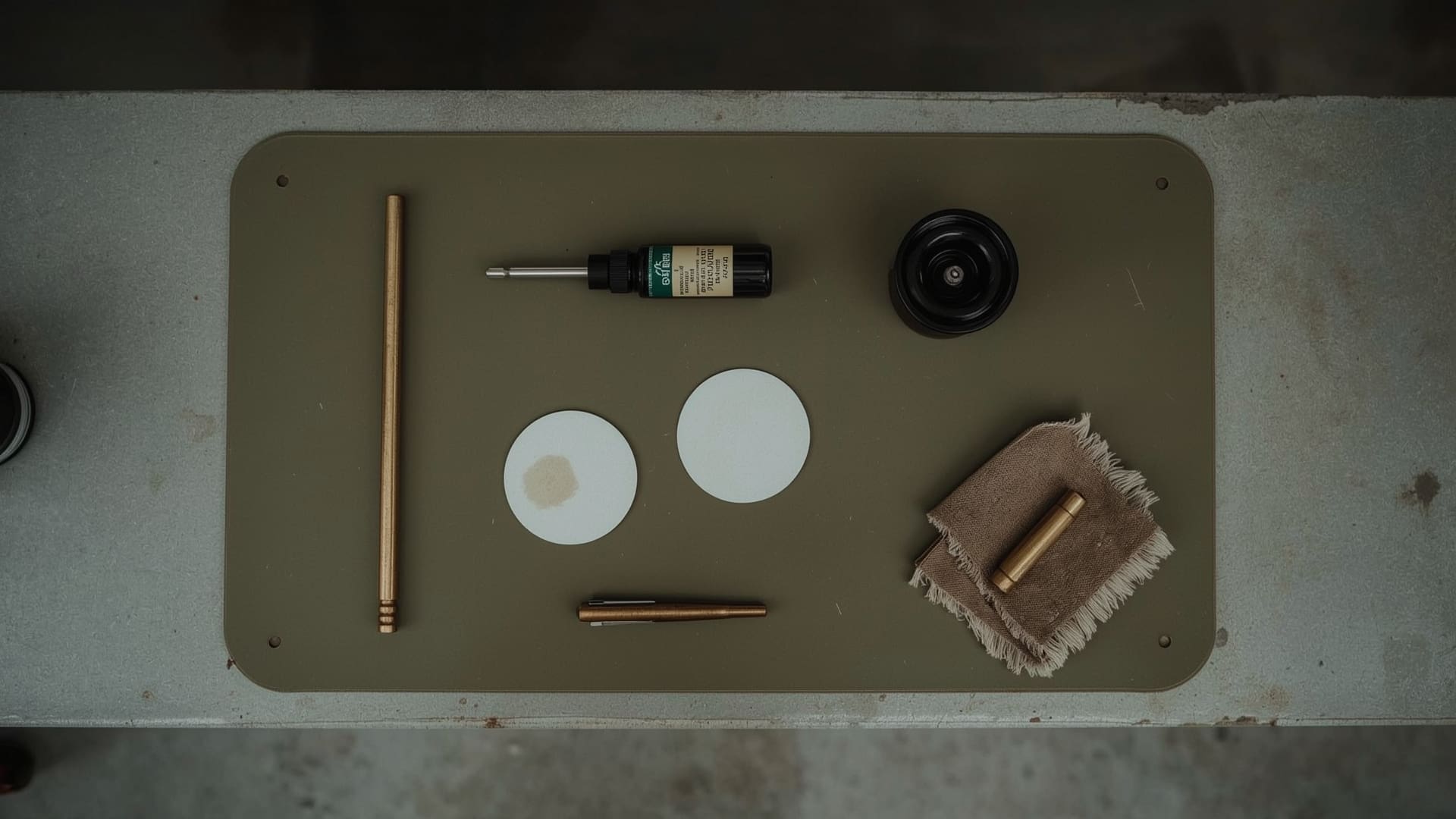

Quick Answer: Most field strips require only your hands, a cleaning rod, and a nylon or brass punch. Some pistols include a disassembly tool. AR-platform rifles may need a takedown punch or a pivot pin tool for stubborn pins.
| Platform | Required Tools | Optional Tools | Typical Strip Time |
|---|---|---|---|
| Semi-Auto Pistol (Glock, M&P, SIG) | Fingers only (most models) | Disassembly tool, cleaning mat | 60–90 seconds |
| AR-15 / AR-10 | Punch or pivot pin tool | Bench block, armorer’s wrench | 2–4 minutes |
| Bolt-Action Rifle | Fingers only (most models) | Cleaning cradle, rod guide | 1–2 minutes |
| 1911-Pattern Pistol | Bushing wrench, flat-head screwdriver | Cleaning mat, punch set | 3–5 minutes |
A quality cleaning mat protects your work surface and keeps small parts from rolling away. This matters most with the 1911 platform, which has a recoil spring plug under tension that can launch across the room if you’re not careful.

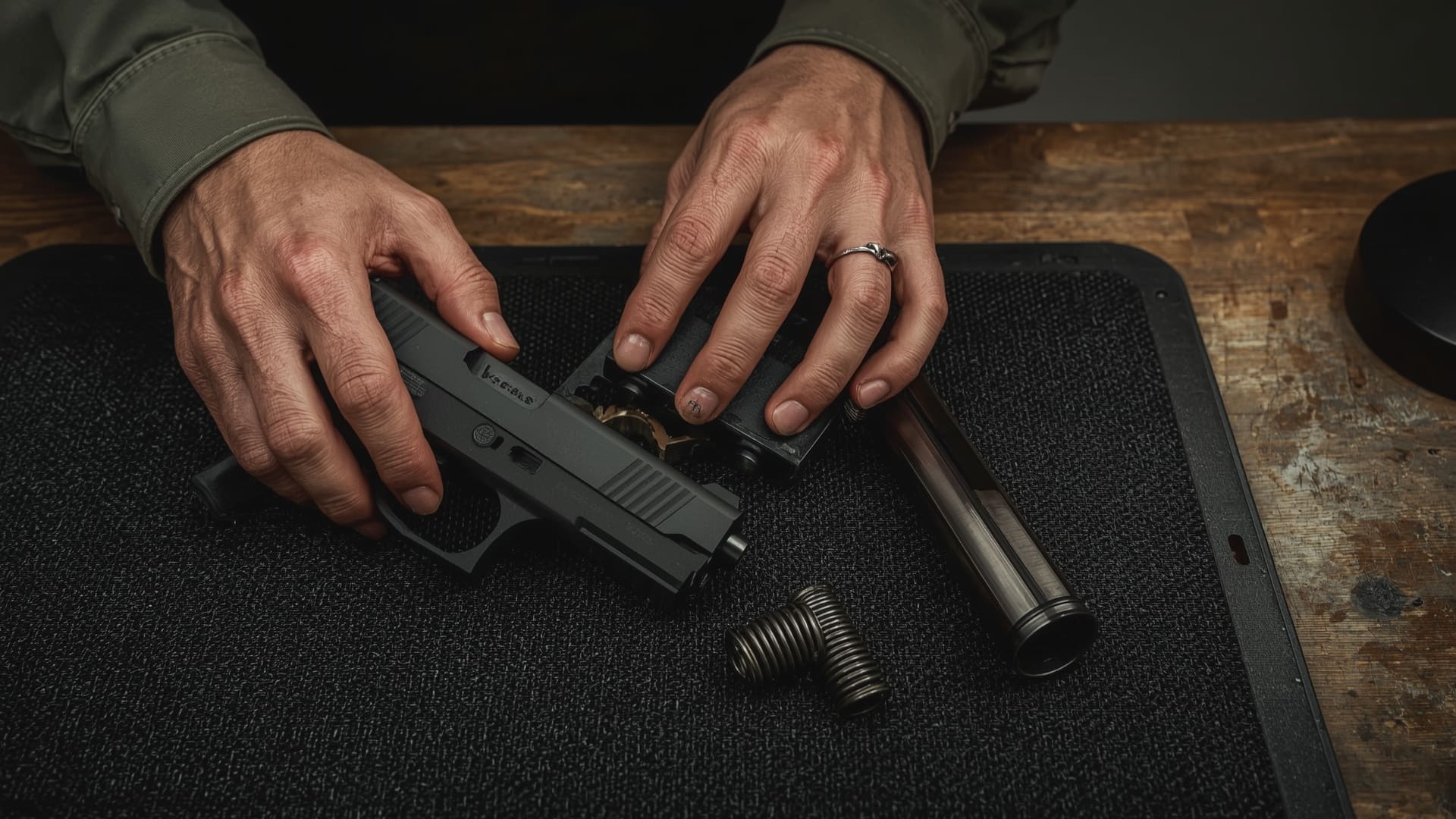

Quick Answer: For most semi-auto pistols, unload the gun, lock the slide back, rotate the takedown lever or push the takedown tabs, release the slide forward, then pull the slide off the frame. The recoil spring and barrel lift straight out.
The Glock is one of the most common pistols in the world, and its field strip procedure is almost identical across all Glock models from the Glock 17 to the Glock 43X.
You now have four components: the frame, the slide, the recoil spring assembly, and the barrel. That’s all you need for routine cleaning.
The 1911 has been in production since 1911 and requires a few more steps than polymer-framed pistols. You’ll need a bushing wrench for the barrel bushing at the muzzle end.
Quick Answer: AR-platform rifles separate into upper and lower receivers by pushing out two pins — the pivot pin and the takedown pin. The bolt carrier group and charging handle then slide out of the upper receiver. Total field strip takes 2 to 4 minutes.
Your AR-15 is now in its field-stripped state: lower receiver, upper receiver, bolt carrier group, bolt, charging handle, buffer, and recoil spring. Seven components total.
| Component | Primary Fouling Location | Cleaning Tool | Inspection Point |
|---|---|---|---|
| Bolt Carrier Group | Gas key, carrier interior | Carbon scraper, CLP solvent | Gas rings, cam pin hole |
| Bolt Face | Extractor groove, firing pin hole | Bronze brush, pick tool | Extractor spring tension |
| Upper Receiver / Barrel Extension | Feed ramps, barrel extension lug | Nylon brush, solvent | Feed ramp cracks or wear |
| Bore / Barrel | Rifling grooves, muzzle crown | Bore brush, cleaning rod, patches | Crown damage, erosion at throat |
| Lower Receiver | Magazine well, trigger group | Nylon brush, compressed air | Trigger reset, safety function |
Quick Answer: Most bolt-action rifles field strip by opening the bolt, pressing a bolt release or disassembly button, and pulling the bolt straight out of the receiver. On most models — like the Remington 700 or Ruger American — this takes under 60 seconds.
That’s the complete field strip for a Remington 700. The bolt is the primary cleaning target. The bore can be accessed from the chamber end (preferred) or the muzzle end once the bolt is out.
The Ruger American and Mossberg Patriot both use a dedicated bolt release button rather than the trigger, which makes the process slightly safer and more intuitive for beginners.
| Rifle Model | Bolt Release Method | Strip Time | Bolt Type | Common Calibers |
|---|---|---|---|---|
| Remington 700 | Trigger press + pull | Under 60 seconds | Push-feed, round body | .308 Win, .30-06, 6.5 Creedmoor |
| Ruger American | Dedicated bolt release button | Under 60 seconds | Push-feed, 3-lug | .243 Win, .308 Win, .350 Legend |
| Mossberg Patriot | Dedicated bolt release button | Under 60 seconds | Push-feed, round body | .308 Win, 6.5 Creedmoor, .300 Win Mag |
| Winchester Model 70 | Safety-to-middle position + pull | 60–90 seconds | Controlled-feed, Mauser-style | .30-06, .270 Win, .300 Win Mag |
| Savage Axis / 110 | Bolt release lever on left side | Under 60 seconds | Push-feed, AccuTrigger | .308 Win, .223 Rem, 6.5 Creedmoor |
Quick Answer: Reassembly is the reverse of disassembly. Seat the barrel first, then the recoil spring, then attach the slide or upper receiver. Always run a function check — cycle the action manually and test the safety — before loading.
Work on a clean mat with good lighting. Lay parts out in the order they came off so you know exactly what goes back in which sequence. If a component doesn’t seat smoothly, stop and check alignment before applying force.
For the AR-15, confirm the bolt is fully forward in the carrier before inserting the BCG into the upper. The cam pin must be aligned correctly or the BCG won’t seat. If you feel resistance, rotate the BCG slightly and try again.
For the 1911, the barrel link must be rotated to the correct position before the slide will seat on the frame. This trips up beginners more than any other step on that platform.
If any step fails, do not load the firearm. Go back through your reassembly and identify what’s out of place.
Quick Answer: The most common beginner mistakes are skipping the chamber check, pulling the trigger on a Glock before confirming it’s empty, losing the recoil spring under tension, and reassembling the AR-15 bolt carrier group with the cam pin in the wrong orientation.
This is the most dangerous error. Dropping the magazine does not unload the gun. A round can remain in the chamber even with the magazine out. Always lock the action open and physically look into the chamber. Use a finger if your sight line is limited.
Firearms are precision tools. If something won’t go back together with firm hand pressure, stop. Something is misaligned. Forcing parts can damage frame rails, roll pins, or locking recesses. Check your manual and retry the step from the beginning.
The recoil spring in a 1911 or older semi-auto pistol is under tension and will fly off if you’re not controlling it. Work over a cleaning mat inside a cardboard box if you’re new to a specific platform. The spring is small and can be nearly invisible on a carpet.
Cleaning and reassembling a gun without running a function check is like changing your brakes without testing them. It takes 30 seconds and tells you whether the trigger, safety, and reset are all working before you load a single round.
If you own multiple pistols of the same platform, keep them field-stripped one at a time. Some Glock barrels are interchangeable across generations. Some are not. A barrel from a Gen 3 Glock 19 may not drop into a Gen 5 frame assembly correctly. Keep guns separated on the bench during cleaning sessions.
| Platform | Most Common Mistake | Consequence | Prevention |
|---|---|---|---|
| Glock / Striker-Fired Pistol | Pulling trigger without chamber check | Negligent discharge | Always lock slide back and visually inspect first |
| 1911 | Losing recoil spring plug | Lost part, damaged surface | Work over mat, control plug during removal |
| AR-15 | Cam pin in wrong orientation on BCG | BCG won’t seat, potential malfunction | Confirm cam pin slot aligns with carrier key before inserting |
| Bolt-Action | Incorrect bolt release technique | Damaged receiver, bent bolt stop | Use manual’s specific release method for your model |
| All Platforms | Skipping function check after reassembly | Undetected malfunction | Run 6-step function check every time |
Quick Answer: Field strip and clean your firearm after every range session, after exposure to rain or extreme dust, and every 3 to 6 months during storage even if unfired. Most manufacturers recommend a full clean at minimum every 500 rounds for semi-autos and every 200 rounds for bolt-actions fired with corrosive ammunition.
Rimfire firearms — like the Ruger 10/22 — are an exception. Rimfire ammunition is inherently dirtier than centerfire, and most .22 LR platforms benefit from a cleaning every 100 to 150 rounds. They also accumulate lead deposits faster than jacketed ammunition leaves copper fouling.
Firearms stored long-term should be lightly oiled before storage and field stripped for inspection every 6 months to check for rust, dry lubricant, or pest damage to wood stocks.
Quick Answer: Apply all four basic firearm safety rules during field stripping: treat every gun as loaded, never point it at anything you’re not willing to destroy, keep your finger off the trigger until you must press it for disassembly, and know what’s beyond your muzzle during the process.
Point the firearm in a safe direction the entire time it’s in your hands — even while field stripping. A safe direction means a wall, floor, or direction where an accidental discharge would not harm anyone. In a home, that typically means downward into a concrete floor or toward a heavy gun safe backstop.
Some pistols — most Glocks and several other striker-fired designs — require a trigger press to release the striker before the slide will come off. This step must only happen after you have physically verified the chamber is empty. A visual check alone is not enough. Also confirm with your finger if the lighting is poor.
Most modern semi-automatic pistols and bolt-action rifles can be field-stripped with just your hands. The Glock, SIG P320, and most bolt-actions require no tools at all. The 1911 is the main exception — it requires a bushing wrench for the barrel bushing. AR-platform rifles may need a punch to free a tight pivot or takedown pin.
Yes, but only after the chamber has been verified empty. The Glock requires a trigger press to deactivate the striker before the slide will separate from the frame. This is a safe and intentional design feature. The danger comes from skipping the chamber verification step before pressing the trigger.
Run a bore brush through the barrel 8 to 10 times to loosen fouling, then follow with solvent-soaked patches until they come out clean. Finish with a lightly oiled patch. Clean from the chamber end toward the muzzle when possible, especially on rifle barrels, to protect the rifling crown.
The bolt carrier group (BCG) is the heart of the AR-15’s operating system. It includes the bolt, carrier, firing pin, cam pin, and extractor. During firing, hot gas drives the BCG rearward to eject the spent case and chamber a new round. It is the dirtiest component on the rifle and the primary cleaning target after field stripping.
No. Field stripping is a routine, manufacturer-intended maintenance procedure. Every major firearms manufacturer — including Glock, Smith and Wesson, Ruger, and Sig Sauer — includes field strip instructions in their owner’s manual. Only unauthorized modifications or attempts at detail stripping without proper training could affect warranty coverage.
Most people can field strip a semi-automatic pistol confidently after 3 to 5 practice sessions. The AR-15 typically takes 2 to 3 sessions to get comfortable. Bolt-action rifles are the fastest to learn — most new shooters get it right on the second attempt. Watching the disassembly once before attempting it yourself reduces errors significantly.
